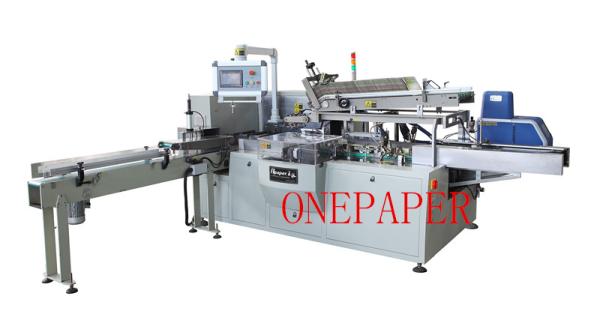

Box tissue packing machine OPH-100B with all servo motor
Applications:
It is suitable for automatic boxing of napkins, sanitary towels,
pads, wet tissues,etc. Our machine has passed I S O 9 0 0 1 quality
certification and CE certification. It has been used by many
domestic and international enterprises in such industries as
APP,Fine, Nepia, Vinda, Deli, TRUECOLOR, BEIFA, brother, GLAD, etc.
Also we can provide personalization design to meet the requirements
of different customers. Meanwhile, we can provide resources and
technical support to help the customer to build their ideal
factory.
Main performance and structural features:
1, Packing forms such as automatic feeding, box opening, boxing,
batch No. printing, glue spreading, box sealing, etc. are adopted.
Featured by compact and reasonable structure, simple operation and
adjustment；
2, Servo/step motor, touch screen, PLC control system and
man-machine interface display make operation more clear and
convenient. With high automation degree, the machine is more
user-friendly；
3, The automatic material arranging and conveying mechanism is
adopted to facilitate linked production with automatic production
line, which can greatly reduce labor cost；
4, The photoelectric eye automatic detection tracking system is
adopted. No boxing is made if the bag is empty, so as to save
packing materials to the utmost extent；
5, With wide packing range and convenient adjustment, fast
switching among various specifications and sizes can be realized；
6, Change of specifications does not need change of molds, but can
be realized through adjustment；
7, Automatic stopping is available when the material boxing is not
in place, and the main driving motor overload protection device is
used, so that the machine is safer and more reliable；
8, According to customer requirements, the upturning type safety
protective cover is adopted, which is featured by simple operation
and beautiful appearance.
Performance technical parameters:
| Item/model | OPH-100B-H |
| Paper quality of carton | 250-350g/m³ |
| Maximum packing specification | L240mm×W120mm×H90mm |
| Packing speed | 50-100 boxes/minute |
| Hot melt machine power | 2.32KW |
| Motor power | 2.74KW |
| Total power | 5.1KW |
| Power supply type | (3phase 4wire) 380V 50Hz |
| Machine noise | ≤80dB |
| Air supply | 0.5-0.8 Mpa |
| Air consumption | 120-160L/min |
| Outline dimensions Main machine | L3250×W1650×H1800mm |
| Machine weight | 1500Kg |
Note: The products of our company may always be updated, and are
subject to change without notice (the real products shall prevail)!
